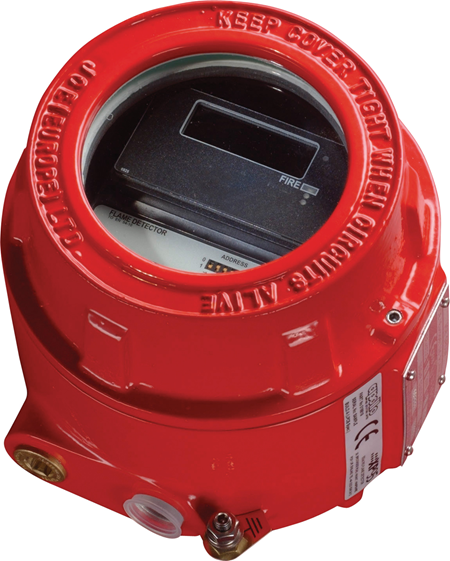

Conventional Exd Flame Detector (IR3) - Flameproof
55000-062APO
The Conventional Exd Flame Detector (IR3) is designed for use in hazardous environments in indoor and outdoor applications. It is sensitive to low-frequency flickering infra-red radiation emitted by flames during combustion. The sensor operates even through a layer of oil, dust, water vapour or ice. BASEEFA has certified the detector for compliance to standards EN 60079-0, EN 60079-1 and EN 61241-1.
- ATEX & IECEx certified: II2GD Ex d IIC T4 Gb Ex tb IIICT135 °C Db IP66 A21 (Zones 1, 21, 2 and 22)
- Selectable output options: Conventional two-wire, 4-20mA, Latching or Non-latching, Relay Contacts - Fire/Fault, Pre alarm
- Class 1 sensitivity to EN 54-10 detects 0.1m2 fire at 25m
- High optical interference immunity
- Selectable response speed
- Optical self test
- Low power consumption
Technical specification
General |
|
---|---|
Mechanical |
|
Conformance |
|
