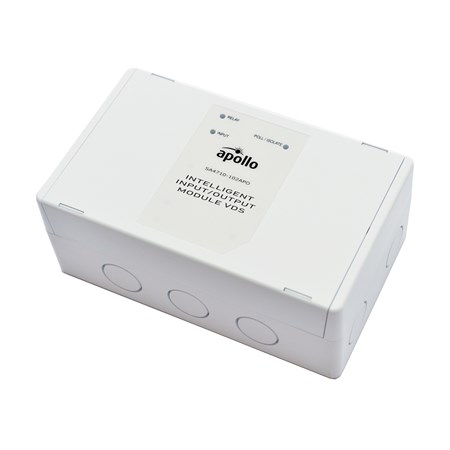

Intelligent Input/Output Module VdS

Name: Intelligent Input/Output Module VdS
Brand: Discovery
SKU: SA4710-102APO

SA4710-102APO

The Intelligent Input/Output Module is used to monitor single pole, volt free contact inputs and control relay output contacts.

Technical specification

General	Warranty 10 year
Mechanical	Colour White Weight 244g Product length 60mm Product width 150mm Product depth 90mm Relay output contact rating 1A Relay output rating tested at 30V ac Product length 2.36in Product width 5.91in Product depth 3.54in
Conformance	Standards EN 54-17 EN 54-18 Approvals FG LPCB SBSC BOSEC VdS CPR
Electrical	Protocol voltage (min) 5V Protocol voltage (max) 13V Protocol voltage 5 to 13V peak to peak Quiescent current 500μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc Polarity L1 & L2 are polarity sensitive Battery powered No Power-up surge current 0.9mA Status indicator - Poll Flashing green Relay contact ratings 1A Contact rating tested at 30V Status indicator - relay active Red Status indicator - relay fault Continuous Yellow Status indicator - Input active Continuous Red Status indicator - Unit fault Flashing yellow
Environmental	Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C IP rating Value IP52 Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F
