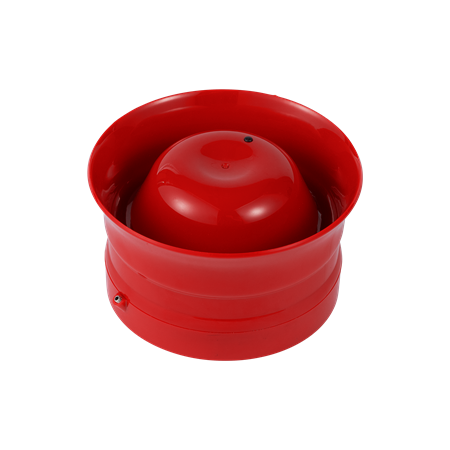

Intelligent Open-Area Sounder - Red Body

SA5500-300APO

The Intelligent Open-Area Sounders work natively across XP95, Discovery and CoreProtocol, offering advanced functionality and performance in open areas.

Technical specification
Mechanical
Colour
Red
Product depth
65mm
Product diameter
113mm
Weight
178g
Product depth
2.56in
Product diameter
4.45in
Conformance
Approvals
CPR
Electrical
Quiescent current
890μA
Quiescent current tested at
24V dc
Supply voltage (min)
17V dc
Supply voltage (max)
35V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
-10 to 55°C
IP rating Value
IP33
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
Downloads

This page uses Javascript you will need to switch on Javascript to view the page.

Approvals

This page uses Javascript you will need to switch on Javascript to view the page.

Accessories

XPERT 7 Base

45681-210APO

The XPERT 7 Base is a low insertion force base with stainless steel contacts allowing easy and quick installation.

XPERT 8 Base

SA5000-200APO

The XPERT 8 Base is a universal base that fits all Apollo detectors from the Soteria, Discovery and XP95 ranges.

XPERT 8 Base - Red

SA5000-202APO

The Red XPERT 8 Base is a universal base designed for use with our red product offering.
