XPander Manual Call Point

Name: XPander Manual Call Point
Brand: XPander
SKU: XPA-MC-14101-APO

XPA-MC-14101-APO

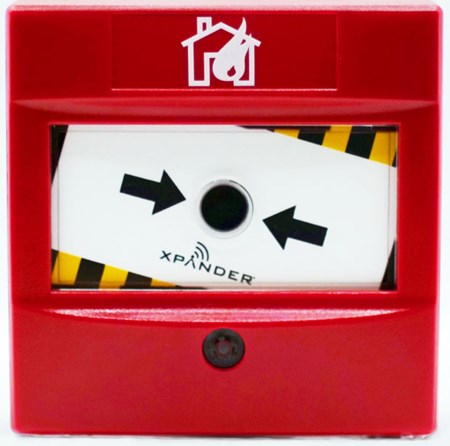

The XPander Manual Call Point is a wireless Apollo-style MCP, with mechanical aesthetics and reset key to complement SA5900-908APO. It is powered by six AA Alkaline batteries (included) which provide a typical working life of five to seven years.

Wireless operation
EN 54-11 Certified
Resettable operating element (Apollo reset key)
XPERT card addressing system

Technical specification

Mechanical

Colour: Red

Weight: 350g

Product length: 98mm

Product width: 90mm

Product depth: 72.5mm

Detection principle: Operation of a switch.

Product length: 3.86in

Product width: 3.54in

Product depth: 2.85in

Conformance

Approvals: CPR

Environmental

Humidity (max): 95% RH

Humidity (min): 0% RH

Humidity: 0% to 95% (no condensation or icing)

Humidity Note: no condensation or icing

Operating temperature (min): -10°C

Operating temperature (max): 55°C

Operating temperature: -10 to 55°C

Storage temperature (min): 5°C

Storage temperature (max): 30°C

Storage temperature: 5 to 30°C

Operating temperature: 14 to 131°F

Operating temperature (max): 131°F

Operating temperature (min): 14°F
