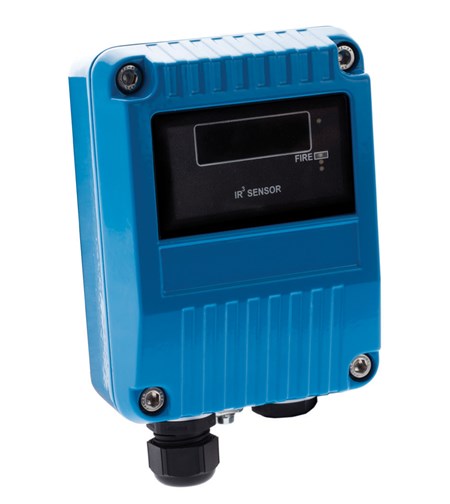

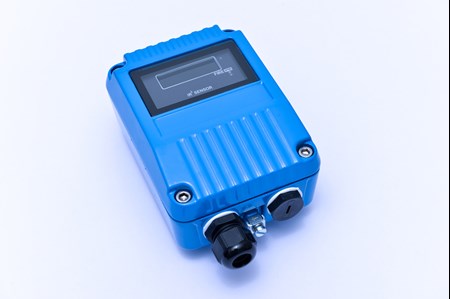

XP95 Flame Detector (IR3)

55000-020APO

The XP95 Flame Detector (IR3) is designed to protect areas where open flaming fires may be expected. It is sensitive to low frequency, flickering infra-red radiation emitted by flames during combustion.

  • Loop-powered
  • Sensitive to flickering IR radiation
  • Detects through films of oil, dust, water and ice
  • Responds to flickering flames, including those invisible to the naked eye
  • False alarms due to lighting or flickering sunlight are minimised
  • Compatible with Discovery and XP95 protocols
Technical specification
General
Warranty
3 year
Mechanical
Colour
Blue
Weight
2000g
Materials housing
Die-cast zinc alloy
Product length
142mm
Product width
108mm
Product depth
82mm
Product length
5.59in
Product width
4.25in
Product depth
3.23in
Conformance
Approvals
CPR LPCB
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Storage temperature (max)
65°C
Storage temperature (min)
-20°C
Storage temperature
-20 to 65°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
