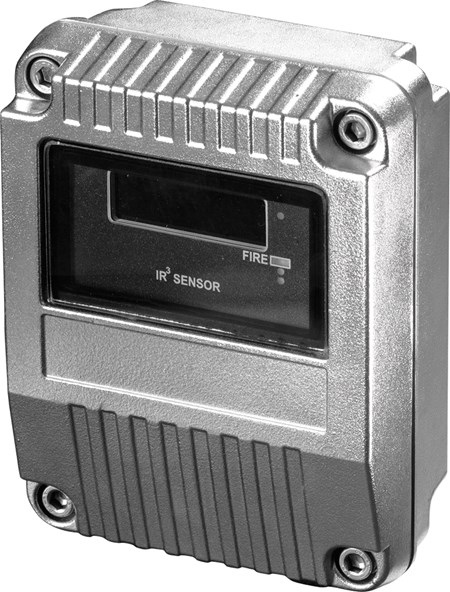

XP95 Marine Flame Detector (IR3) - Stainless Steel

55000-034MAR

The XP95 Marine Flame Detector (IR3) is designed to protect areas where open flaming fires may be expected.

Technical specification
General
Warranty
3 year
Default Variant
No
Website Categories
  • Analogue Addressable
  • Specialist Detectors
Conformance
Approvals
  • ABS
  • MED
Performance
Range of view (at 25m)
0.1m² n-heptane
Range of view (at 35m)
0.2m² n-heptane
Range of view (at 45m)
0.4m² n-heptane
Field of view
90°
Spectral response - IR
1 to 2.7μm
Spectral response (max) - IR
2.7μm
Spectral response (min) - IR
1μm
Sensitivity
  • High-Class 1
  • Low-Class 3
Electrical
Maximum power-up time
4 seconds
Quiescent current
2200μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Mechanical
Weight
2100g
Product length
75mm
Product width
108mm
Product depth
142mm
Number of cable gland entries
2
Cable gland entries size
20mm
Product length
2.95in
Product width
4.25in
Product depth
5.59in
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
IP rating Value
IP66
Storage temperature (max)
65°C
Storage temperature (min)
-20°C
Storage temperature
-20 to 65°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
