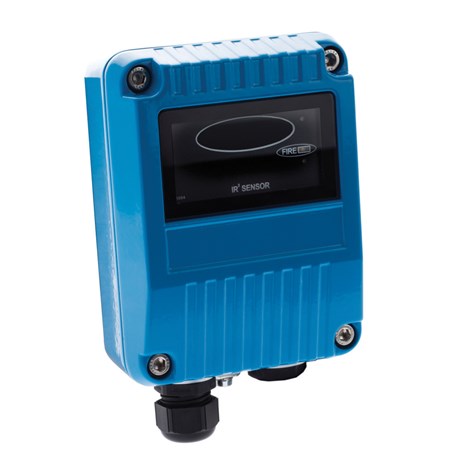

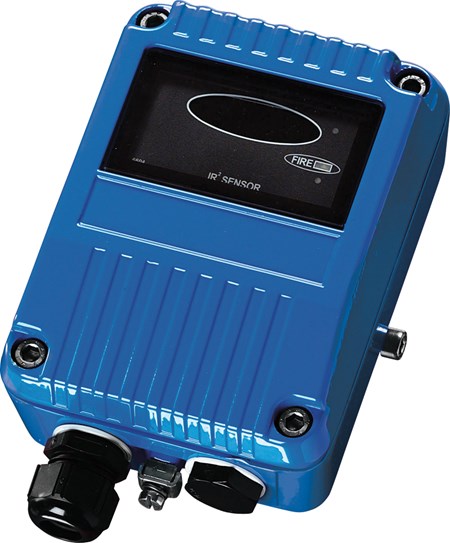

XP95 Flame Detector (IR2)

55000-280APO

The XP95 Flame Detector (IR2) is designed for use in areas where flaming fires may be expected. The detector has two sensors which respond to different IR wavelengths to discriminate between flames and spurious sources of radiation.

Technical specification
General
Warranty
3 year
Default Variant
Yes
Website Categories
  • Specialist Detectors
  • Analogue Addressable
Mechanical
Colour
Blue
Weight
1000g
Materials housing
Die-cast zinc alloy
Product length
142mm
Product width
108mm
Product depth
82mm
Number of cable gland entries
2
Cable gland entries size
20mm
Product length
5.59in
Product width
4.25in
Product depth
3.23in
Conformance
Approvals
  • CPR
  • FG
  • LPCB
Performance
Range of view (at 25m)
0.1m² n-heptane
Range of view (at 35m)
0.2m² n-heptane
Range of view (at 45m)
0.4m² n-heptane
Field of view
90°
Sensitivity
  • High-Class 1
  • Low-Class 3
Electrical
Maximum power-up time
4 seconds
Quiescent current
2200μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
IP rating Value
IP65
Storage temperature (max)
65°C
Storage temperature (min)
-20°C
Storage temperature
-20 to 65°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
