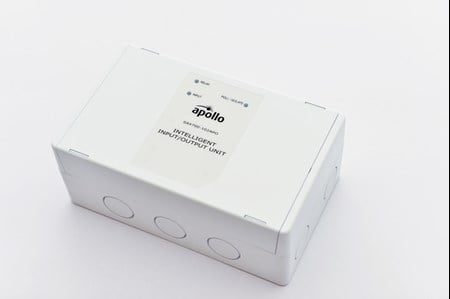

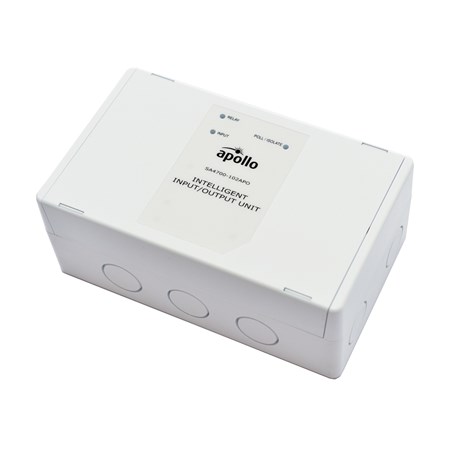

Intelligent Input/Output Module

SA4700-102APO

The Intelligent Input/Output Module is used to monitor single pole, volt free contact inputs and control relay output contacts.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Associated Ranges
Apollo
Mechanical
Colour
White
Weight
244g
Product length
60mm
Product width
150mm
Product depth
90mm
Relay output contact rating
1A
Relay output rating tested at
30V ac
Product length
2.36in
Product width
5.91in
Product depth
3.54in
Conformance
Standards
  • EN 54-17
  • EN 54-18
Approvals
  • FG
  • LPCB
  • SBSC
  • BOSEC
  • VdS
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
13V
Protocol voltage
5 to 13V peak to peak
Quiescent current
500μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Polarity
L1 & L2 are polarity sensitive
Battery powered
No
Power-up surge current
0.9mA
Status indicator - Poll
Flashing green
Relay contact ratings
1A
Contact rating tested at
30V
Status indicator - relay active
Red
Status indicator - relay fault
Continuous Yellow
Status indicator - Input active
Continuous Red
Status indicator - Unit fault
Flashing yellow
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP52
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
