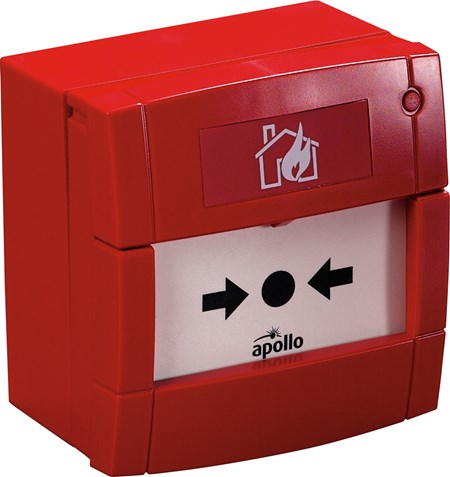

Conventional Manual Call Point (without LED)

55100-001APO

The Conventional Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Manual Call Points
  • Conventional
Mechanical
Colour
Red
Weight
180g
Product length
89mm
Product width
93mm
Product depth
60mm
Key type
KAC Manal Call Point test & reset key
Product length
3.5in
Product width
3.66in
Product depth
2.36in
Conformance
Standards
EN 54-11
Environmental
Humidity (max)
93% RH
Humidity (min)
0% RH
Humidity
0% to 93% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-10°C
Operating temperature (max)
55°C
Operating temperature
-10 to 55°C
IP rating Value
IP24D
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
