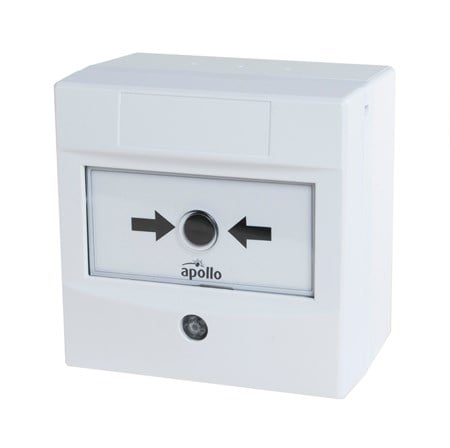

Intelligent Manual Call Point – White

SA5900-903APO

The Manual Call Point is commonly used to manually initiate a hazard alert.

Resettable operating element
170° viewable LED
Suitable for semi flush or surface mounting
‘Plug and Play’ terminal connections for faster wiring
Continuity link for wiring test before commissioning
XP95, Discovery and CoreProtocol compatible

Technical specification

General	Warranty 10 year
Mechanical	Colour White Weight 180g Materials housing Polycarbonate Product length 90mm Product width 90mm Product depth 63mm Key type Apollo Manal Call Point reset key Product length 3.54in Product width 3.54in Product depth 2.48in
Conformance	Standards EN 54-11 EN 54-17
Performance	Analogue value nominal 16 Alarm level analogue value 64 Fault level analogue value 4 Type A Operating element Resettable element Action Single
Electrical	Protocol voltage (max) 13V Protocol voltage (min) 5V Protocol voltage 5 to 13V peak to peak Power-up surge current 1mA Maximum power-up time 1 second Status indicator – Alarm Red Status indicator – Fault Yellow Status indicator – Isolate Yellow Status indicator – Poll Flashing green Quiescent current 100μA Quiescent current tested at 24V dc Supply voltage (max) 35V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 35V dc Polarity L1 & L2 are polarity sensitive
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Operating temperature (min) -40°C Operating temperature (max) 70°C Operating temperature -40 to 70°C IP rating Value IP44 Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F

Downloads

Data sheet

BIM file

Installation guide

Approvals

Declaration of Conformity

DoC – EMC Directive 2014//30/EU_RoHS Directive 2011/65/EU_2015/863/EU
