XP95 Open-Area Sounder VID - Red Body (Red Flash) - Isolating

55000-005APO

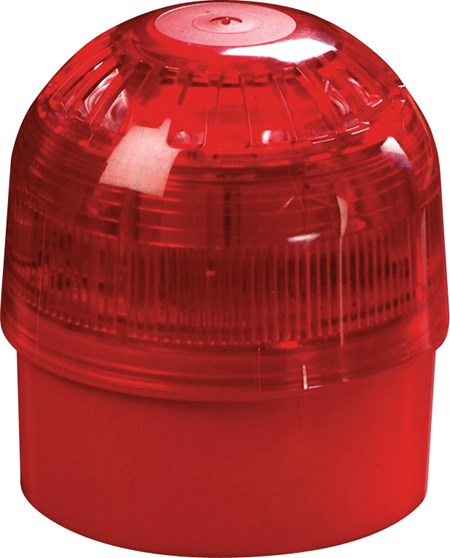

XP95 Open-Area Sounder Visual Indicator with red body and red flash. Built-in isolator.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Associated Ranges
Apollo
Wireless
No
Performance
Maximum sound output tone
100dB (A)
Selectable volume(s)
  • 92dB (A)
  • 100dB (A)
Tone(s)
3
Mechanical
Colour
Red
Materials housing
Polycarbonate
Product depth
97.5mm
Product diameter
104mm
Weight
260g
Product depth
3.84in
Product diameter
4.09in
Conformance
Standards
EN 54-3
Approvals
  • LPCB
  • CPR
Electrical
Polarity
L1 & L2 are polarity sensitive
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
330μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
IP rating Value
IP65
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
