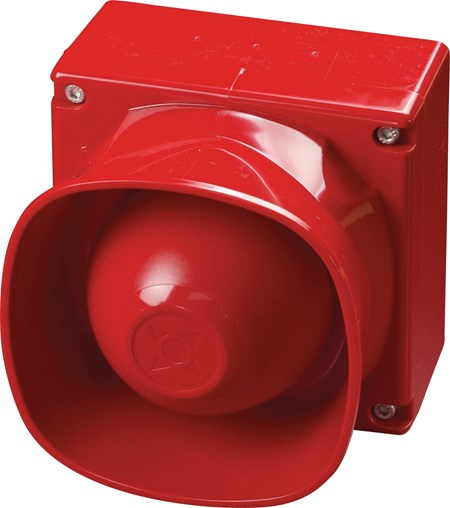

XP95 Open-Area Multi-Tone Sounder - Outdoor - Red Body

55000-274APO

The XP95 Open-Area Multi-Tone Sounder is designed for use in open areas and can be connected to any Discovery or XP95 system.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Performance
Maximum sound output tone
100dB (A)
Selectable volume(s)
  • 92dB (A)
  • 100dB (A)
Mechanical
Colour
Red
Product length
110mm
Product width
110mm
Product depth
113mm
Weight
294g
Product length
4.33in
Product width
4.33in
Product depth
4.45in
Conformance
Approvals
  • FG
  • CPR
Electrical
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
330μA
Quiescent current tested at
24V dc
Supply voltage (min)
18V dc
Supply voltage (max)
28V dc
Supply voltage (Vmin-Vmax)
18 to 28V dc
Environmental
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
Operating temperature
-20 to 70°C
IP rating Value
IP66
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
