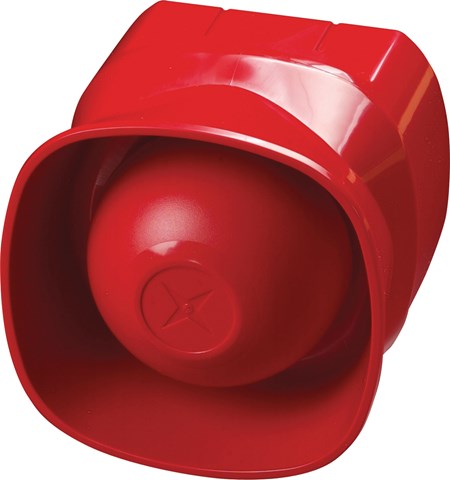

XP95 Open-Area Multi-Tone Sounder - Red Body

55000-278APO

The XP95 Open-Area Multi-Tone Sounder is designed for use in open areas and can be connected to any Discovery or XP95 system

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Performance
Maximum sound output tone
100dB (A)
Selectable volume(s)
  • 92dB (A)
  • 100dB (A)
Mechanical
Colour
Red
Product length
105mm
Product width
105mm
Product depth
90mm
Weight
290g
Product length
4.13in
Product width
4.13in
Product depth
3.54in
Conformance
Approvals
  • FG
  • CPR
Electrical
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
330μA
Quiescent current tested at
24V dc
Supply voltage (min)
18V dc
Supply voltage (max)
28V dc
Supply voltage (Vmin-Vmax)
18 to 28V dc
Environmental
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
-10 to 55°C
IP rating Value
IP21C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
