Apollo Fire Detectors | Discovery Marine Multi-Sensor Detector (Optical/Heat) [SIL2]

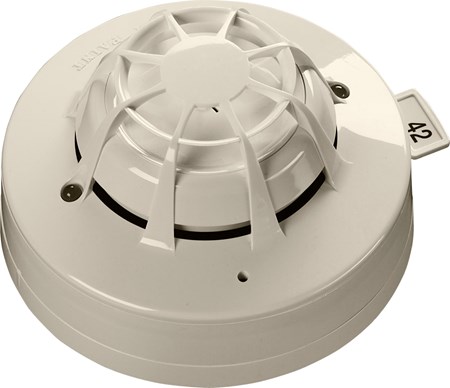

Discovery Marine Multi-Sensor Detector (Optical/Heat) [SIL2]

58000-700MAR

The Discovery Marine Multi-Sensor Detector consists of optical smoke and thermistor temperature sensors which give a combined signal for improved false alarm management.

Reliable fire detection in areas with a very wide temperature range from -40°C to +70°C
Five operating modes for customised fire detection and enhanced false alarm management
Drift compensation to ensure constant sensitivity
A great alternative to Ionisation detectors
Certified to a broad range of marine approvals and EAC approved
Assessed and certified for use in a safety function to SIL level 2

Technical specification

General	Warranty 10 year Applications Bedrooms Large vessels Marine Fire Type Fast and slow burning fires
Performance	Heat classification A1R Analogue value nominal 23 Analogue value (- tolerance) 4 Analogue value (+ tolerance) 0 Analogue value 23 +0/-4 Alarm level analogue value 55 Chamber type Chevron
Mechanical	Colour White Sensor configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. Weight 105g Materials housing Polycarbonate Materials terminals Nickel plated stainless steel Product diameter 100mm Detection principle Photo-electric light scattering. Temperature sensitive resistance. Product diameter 3.94in Product height (wo/base) 50mm
Conformance	Standards EN 54-5 EN 54-7 Approvals BV DNV.GL CCS LR ESC MED
Electrical	Protocol voltage 5 to 9V peak to peak Protocol voltage (max) 9V Protocol voltage (min) 5V Power-up surge current 1mA Maximum power-up time 10 seconds Status indicator – Alarm Red Quiescent current 400μA Quiescent current tested at 24V dc Supply voltage (max) 9V dc Supply voltage (min) 5V dc Supply voltage (Vmin-Vmax) 5 to 9V dc Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity insensitive Sampling frequency Once per second
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C IP rating Value IP44 Storage temperature (max) 80°C Storage temperature (min) -40°C Storage temperature -40 to 80°C Operating temperature (min) -40°F Operating temperature (max) 158°F Operating temperature -40 to 158°F
