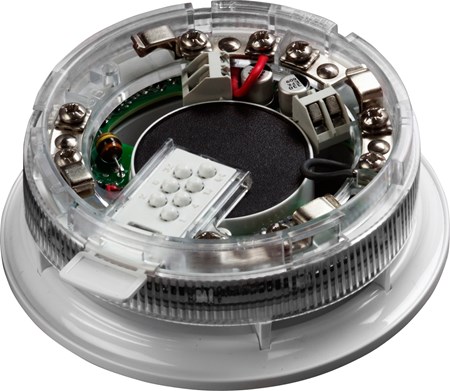

Discovery Marine Sounder VID Base (Red Flash) - Isolating [SIL2]

45681-394MAR

The Discovery Marine Sounder Visual Indicator Base makes full use of the Discovery protocol. For ease of commissioning, a ‘Magnetic Wand’ can be used to test and adjust each sounder locally.

Technical specification
General
Warranty
10 year
Website Specialist Applications
  • Marine
  • Offshore
Conformance
Approvals
  • MED
  • ESC
  • ABS
  • LR
Electrical
Polarity
L1 & L2 are polarity sensitive
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Maximum power-up time
<1 second
Quiescent current
350μA
Quiescent current tested at
24V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
Operating temperature
-20 to 60°C
IP rating Value
IP21D
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
