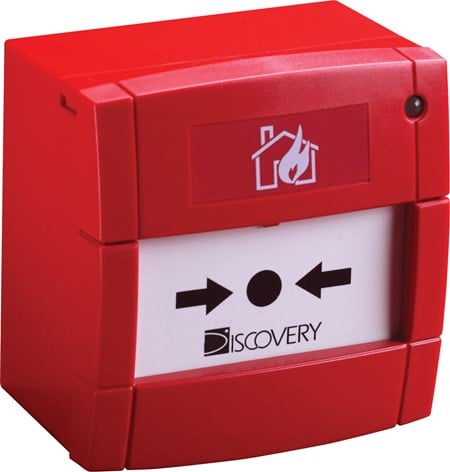

Discovery Manual Call Point

58100-910APO

The Discovery Manual Call Point is commonly used to manually control extinguishant release.

Technical specification
General
Warranty
10 year
Wireless
No
Mechanical
Colour
Red
Weight
180g
Materials housing
Polycarbonate
Product length
88mm
Product width
88mm
Product depth
59mm
Detection principle
Operation of a switch.
Key type
KAC Manal Call Point test & reset key
Product length
3.46in
Product width
3.46in
Product depth
2.32in
Conformance
Standards
EN 54-11
Approvals
  • LPCB
  • CPR
Performance
Analogue value nominal
16
Electrical
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Protocol voltage
5 to 9V peak to peak
Power-up surge current
1mA
Quiescent current
100μA
Polarity
L1 & L2 are polarity sensitive
Loop powered
Yes
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-70°C
Operating temperature (max)
70°C
Operating temperature
-70 to 70°C
IP rating Value
IP24D
Operating temperature
-94 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-94°F
