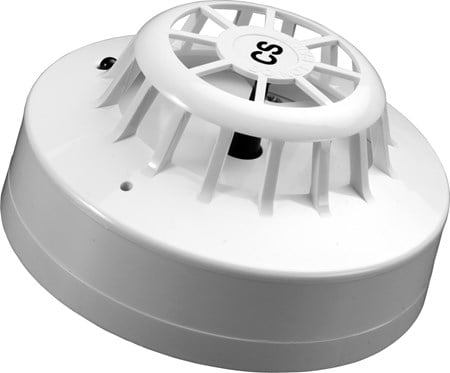

Series 65 Heat Detector (CS)

55000-137APO

The Series 65 Heat Detector monitors temperature by using a dual thermistor network which provides a voltage output proportional to the external air temperature.

Technical specification
General
Warranty
10 year
Applications
  • B&Bs/guest houses
  • Cafes
  • Dusty environments
  • Restaurants
  • Retail
  • Small to medium buildings
Performance
Heat classification
CS
Chamber type
Chevron
Mechanical
Colour
White
Weight
80g
Materials housing
Polycarbonate
Materials terminals
Nickel plated stainless steel
Product length
42mm
Product diameter
100mm
Product length
1.65in
Product diameter
3.94in
Conformance
Approvals
  • BOSEC
  • FG
  • VdS
  • SBSC
  • LPCB
  • CPR
Electrical
Quiescent current
250μA
Polarity
L1 & L2 are polarity insensitive
Holding voltage
6 to 6V
Holding voltage (max)
6V
Holding voltage (min)
6V
Minimum voltage to light alarm LED
12V
Alarm load
420Ω in series with 2V drop
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-20 to 90°C
Operating temperature (max)
90°C
Operating temperature (min)
-20°C
IP rating Value
IP23D
Storage temperature (max)
120°C
Storage temperature (min)
-30°C
Storage temperature
-30 to 120°C
Operating temperature
-4 to 194°F
Operating temperature (max)
194°F
Operating temperature (min)
-4°F
