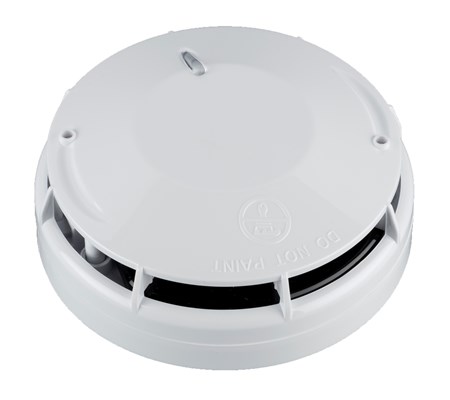

Soteria UL Smoke Detector

SA5150-650APO

The Soteria UL Smoke Detector is Apollo’s most advanced detector offering suitable for a wide range of applications. It utilizes Purelight® high-tech sensing technology that detects smoke particles entering the chamber and substantially reduces the possibility of false alarms.

Technical specification
Mechanical
Colour
White
Weight
83g
Materials housing
Polycarbonate
Product diameter
100mm
Product depth
36mm
Product depth
1.42in
Product diameter
3.94in
Conformance
Approvals
  • FM
  • UL
  • ULC
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Quiescent current
500μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
0 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
0°C
Operating temperature
32 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
32°F
