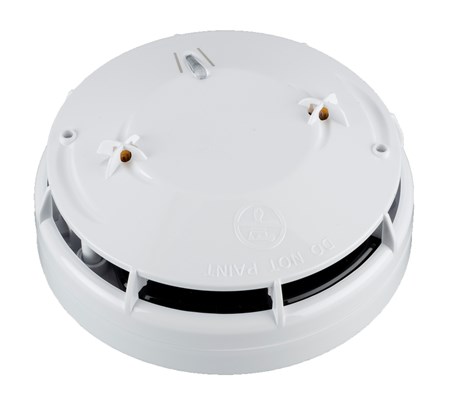

Soteria UL Multi-Criteria Detector (Smoke/Heat)

SA5150-750APO

The Soteria UL Multi-Criteria Detector (Smoke/Heat) is Apollo’s most advanced detector offering suitable for a wide range of applications. It uses Purelight® high-tech smoke sensing technology to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat. It can be switched to detect smoke, heat or a combination of both, offering greater flexibility, fast detection and advanced false alarm management.

Technical specification
Mechanical
Colour
White
Weight
83g
Materials housing
Polycarbonate
Product diameter
100mm
Product depth
38.5mm
Product depth
1.52in
Product diameter
3.94in
Conformance
Approvals
  • UL
  • ULC
  • FM
  • CSFM
  • SII
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Quiescent current
500μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
0 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
0°C
Operating temperature (min)
32°F
Operating temperature (max)
131°F
Operating temperature
32 to 131°F
