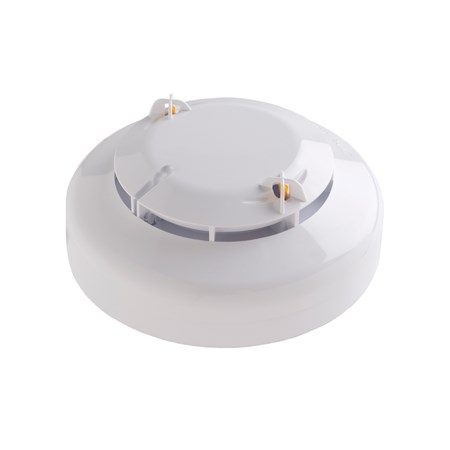

Soteria Heat Detector

SA5100-400APO

The Soteria Heat Detector features two heat sensors located laterally to ensure accurate heat detection in all orientations.

  • Eight response modes for a wide range of application temperatures
  • Utilises digital Core Protocol communications providing a range of advanced fire detection features
  • A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity
  • FasTest for quicker testing of detectors
  • Integrated switchable isolator
Technical specification
General
Warranty
10 year
Applications
Car parks/loading bays Warehouses
Performance
Heat classification
A1R A2R A2S BR BS CR CS
Mechanical
Colour
White
Finish
Gloss
Sensor configuration
Dual exposed heat sensing thermistors.
Weight
90g
Materials housing
Polycarbonate
Materials terminals
Tin plated stainless steel
Product diameter
100mm
Detection principle
Temperature sensitive resistance.
Product diameter
3.94in
Conformance
Standards
EN 54-5 EN 54-17
Approvals
LPCB SBSC BOSEC FG VdS CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
13V
Protocol voltage
5 to 13V peak to peak
Power-up surge current
0.56mA
Status indicator – Alarm
Red
Status indicator – Fault
Flashing yellow
Quiescent current
350μA
Quiescent current tested at
24V dc
Terminal functions L2
+L2 Loop in & out positive
Terminal functions L1 in
-L1 in Loop (isolated) negative
Terminal functions L2 out
-L1 out Loop (isolated) negative
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity sensitive
Status indicator – Isolate
Yellow
Status indicator – Poll
Green
Environmental
Humidity (min)
0% RH
Humidity (max)
95% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature (min)
-40°C
Operating temperature (max)
70°C
Operating temperature
-40 to 70°C
IP rating Value
IP54
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
