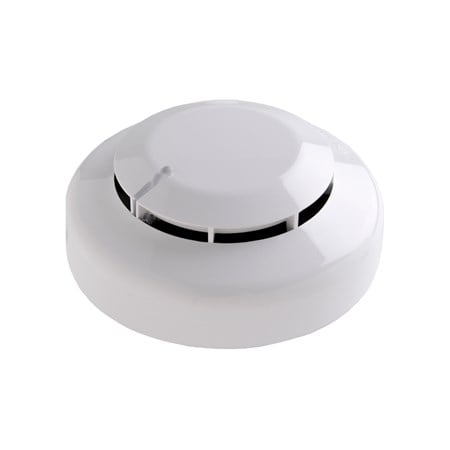

Soteria Optical Smoke Detector

SA5100-600APO

The Soteria Optical Smoke Detector uses advanced optical sensing technology, PureLight, to provide advanced false alarm management and increased detector reliability.

“Serpentine” pathway designed to provide a barrier against dust and insect ingress
Utilises digital Core Protocol communications providing a range of advanced fire detection features
A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity
FasTest for quicker testing of detectors
Five response modes for adaptability to changing environments
Integrated switchable isolator

Technical specification

General	Warranty 10 year Applications Bedrooms Cafes Escape routes Hotels Restaurants Retail B&Bs/guest houses Offices University campuses Fire Type Slow burning, smouldering fires
Mechanical	Colour White Finish Gloss Sensor configuration Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier. Weight 95g Materials housing Polycarbonate Materials terminals Tin plated stainless steel Product diameter 100mm Detection principle Photo-electric light scattering. Product diameter 3.94in
Conformance	Standards EN 54-7 EN 54-17 Approvals SBSC BOSEC FG LPCB VdS CPR
Performance	Analogue value nominal 23 Analogue value (- tolerance) 0 Analogue value (+ tolerance) 4 Analogue value 23 +4/-0 Alarm level analogue value 55 Chamber type PureLight
Electrical	Protocol voltage 5 to 13V peak to peak Protocol voltage (max) 13V Protocol voltage (min) 5V Power-up surge current 0.56mA Status indicator – Alarm Red Status indicator – Fault Flashing yellow Quiescent current 350μA Quiescent current tested at 24V dc Terminal functions L2 +L2 Loop in & out positive Terminal functions L1 in -L1 in Loop (isolated) negative Terminal functions L2 out -L1 out Loop (isolated) negative Terminal functions +R +R Remote indicator positive connection Terminal functions -R -R Remote indicator negative connection Polarity L1 & L2 are polarity sensitive Status indicator – Isolate Yellow Status indicator – Poll Green Sampling frequency Once per second
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C IP rating Value IP44 Effect of wind speed None Wind speed test Tested up to 10m/s Operating temperature -40 to 158°F Operating temperature (max) 158°F Operating temperature (min) -40°F

Downloads

Data sheet

BIM file

Approvals

Certification document

Declaration of Performance

Declaration of Conformity

EMC Directive 2014//30/EU_RoHS Directive 2011/65/EU_2015/863/EU

Environmental Product Declaration

Soteria Optical Smoke Detector EPD
