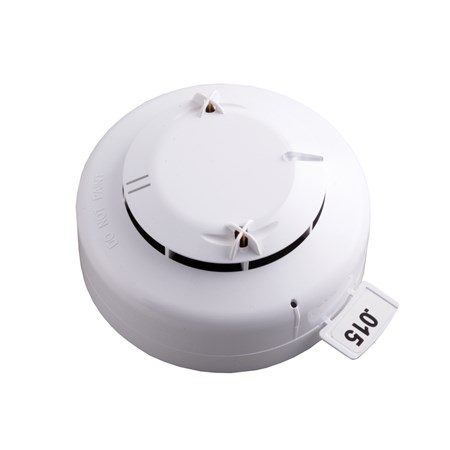

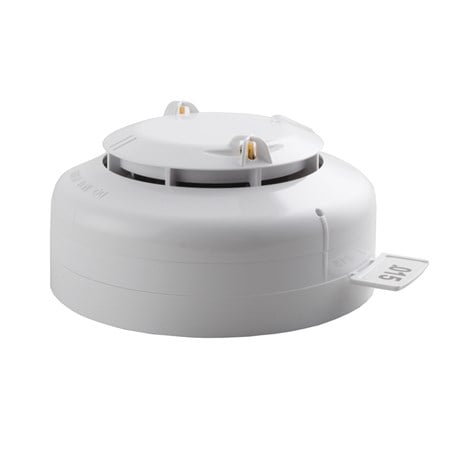

Soteria Multi-Sensor Detector (Optical/Heat)

SA5100-700APO

The Soteria Multi-Sensor Detector uses advanced optical sensing technology, PureLight, to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat. It easily discriminates against false alarm stimuli and is a great environmentally friendly alternative to ionisation detectors.

  • Five modes of operation for ultimate fire detection and false alarm management in a wide range of applications
  • Utilises digital Core Protocol communications providing a range of advanced fire detection features
  • A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity
  • FasTest for quicker testing of detectors
  • Integrated switchable isolator
Technical specification
General
Warranty
10 year
Applications
B&Bs/guest houses Bedrooms Hospitals Hotels Medium to large buildings Offices Car parks/loading bays
Fire Type
Fast and slow burning fires
Mechanical
Colour
White
Finish
Gloss
Sensor configuration
Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier. Dual exposed heat sensing thermistors.
Weight
96g
Materials terminals
Tin plated stainless steel
Product diameter
100mm
Detection principle
Photo-electric light scattering. Temperature sensitive resistance.
Product diameter
3.94in
Product height (wo/base)
38mm
Conformance
Standards
EN 54-5 EN 54-7 EN 54-17
Approvals
BOSEC FG LPCB SBSC VdS CPR
Performance
Analogue value nominal
23
Analogue value (- tolerance)
0
Analogue value (+ tolerance)
4
Analogue value
23 +4/-0
Alarm level analogue value
55
Chamber type
PureLight
Electrical
Protocol voltage
5 to 13V peak to peak
Protocol voltage (max)
13V
Protocol voltage (min)
5V
Power-up surge current
0.56mA
Status indicator – Alarm
Red
Status indicator – Fault
Flashing yellow
Quiescent current
350μA
Quiescent current tested at
24V dc
Terminal functions L2
+L2 Loop in & out positive
Terminal functions L1 in
-L1 in Loop (isolated) negative
Terminal functions L2 out
-L1 out Loop (isolated) negative
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity sensitive
Status indicator – Isolate
Yellow
Status indicator – Poll
Green
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP44
Operating temperature (min)
-40°F
Operating temperature (max)
158°F
Operating temperature
-40 to 158°F
Downloads
Data sheet
BIM file
Approvals
Certification document
Declaration of Performance
Declaration of Conformity
Environmental Product Declaration

You may also wish to consider:

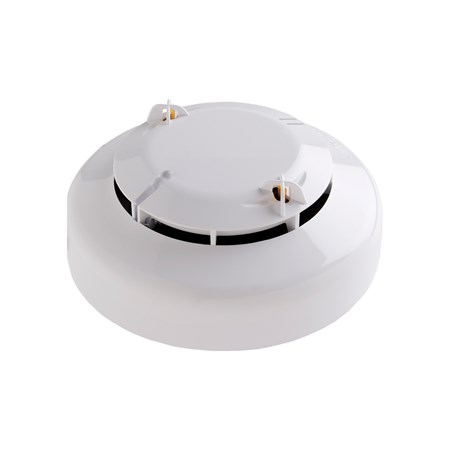

Soteria Multi-Sensor Detector (Optical/Heat) - Non-Isolating
