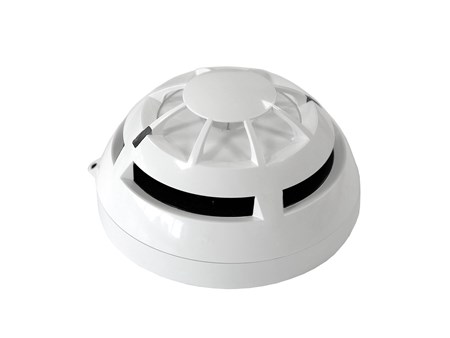

Soteria Multi-Sensor Detector (Dual Optical/Heat)

SA5100-710APO

The Soteria Multi-Sensor Detector (Dual Optical/Heat) uses advanced dual optical sensing technology to accurately detect smoke particles entering the chamber and a central heat thermistor for detecting heat. It has five different operating modes, giving you the option to adapt the detector to suit its environment.

Technical specification
Mechanical
Colour
White
Weight
100g
Product length
55mm
Product diameter
103mm
Product length
2.17in
Product diameter
4.06in
Conformance
Approvals
  • LPCB
  • CPR
  • VdS
Electrical
Quiescent current
600μA
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Environmental
Humidity (max)
90% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 90% (no condensation or icing)
IP rating Value
IP40
Downloads

This page uses Javascript you will need to switch on Javascript to view the page.

Approvals

This page uses Javascript you will need to switch on Javascript to view the page.

Accessories

XPERT 8 Base

SA5000-200APO

The XPERT 8 Base is a universal base that fits all Apollo detectors from the Soteria, Discovery and XP95 ranges.
