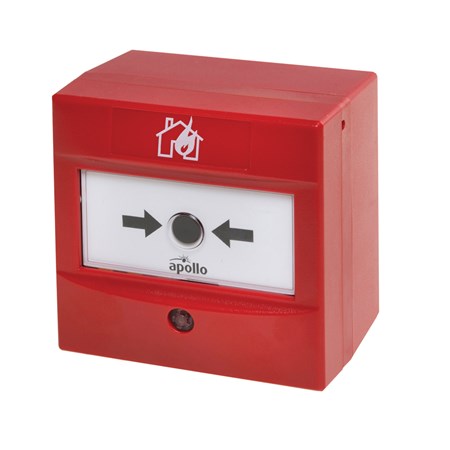

AlarmSense Manual Call Point

55400-894APO

The Manual Call Point has been designed to operate on an AlarmSense two-wire loop. An alarm is initiated by pressing the resettable element, which rotates to display yellow and black indication bars and a solid red LED. The manual call point can be easily reset from the front using the supplied reset key.

Technical specification
General
Warranty
10 year
Mechanical
Colour
Red
Weight
156g
Materials housing
Polycarbonate
Product length
90mm
Product width
90mm
Product depth
63mm
Detection principle
Operation of a switch.
Key type
Apollo Manal Call Point reset key
Product length
3.54in
Product width
3.54in
Product depth
2.48in
Conformance
Standards
EN 54-11
Approvals
  • LPCB
  • CPR
Electrical
Quiescent current
50μA
Quiescent current tested at
24V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
IP rating Value
IP44
