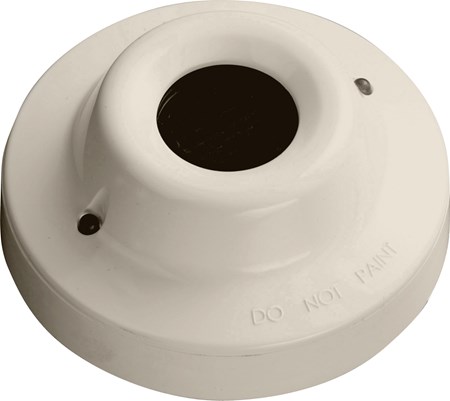

XP95 Marine Flame Detector (IR3) - Base Mounted

55000-029MAR

The XP95 Marine Flame Detector (IR3) is designed to protect all indoor areas, even in dirty or smoky conditions where open flaming fires may be expected. The detector has three IR sensors that respond to different IR wavelengths in order to discriminate between flames and spurious sources of radiation.

Technical specification
General
Warranty
3 year
Mechanical
Colour
White
Weight
150g
Materials housing
Polycarbonate
Materials terminals
Nickel plated stainless steel
Product diameter
100mm
Product depth
40mm
Sensing window material
Float glass
Sensing window thickness
2mm
Product depth
1.57in
Product diameter
3.94in
Conformance
Standards
EN 54-10
Approvals
KRS
Performance
Range of view (at 25m)
0.1m² n-heptane
Field of view
90°
Spectral response - IR
0.75 to 2.7μm
Spectral response (max) - IR
2.7μm
Spectral response (min) - IR
0.75μm
Sensitivity
  • High-Class 1
  • Low-Class 3
Chamber type
Chevron
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
9mA
Maximum power-up time
4 seconds
Quiescent current
2500μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP66
Storage temperature (max)
70°C
Storage temperature (min)
-40°C
Storage temperature
-40 to 70°C
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
