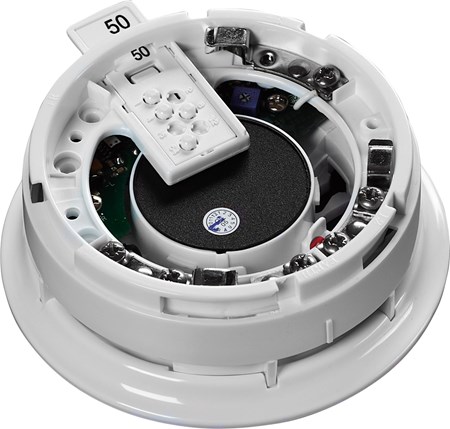

XP95 Sounder Base - Ancillary

45681-276APO

XP95 Sounder Base - Ancillary with mounting base. Designed for indoor use.

Technical specification
General
Warranty
10 year
Performance
Selectable volume(s)
  • 70dB (A)
  • 71dB (A)
  • 72dB (A)
  • 73dB (A)
  • 74dB (A)
  • 75dB (A)
  • 76dB (A)
  • 77dB (A)
  • 78dB (A)
  • 79dB (A)
  • 80dB (A)
  • 81dB (A)
  • 82dB (A)
  • 83dB (A)
  • 84dB (A)
  • 85dB (A)
Tone(s)
1
Mechanical
Colour
White
Materials housing
Polycarbonate
Product depth
38mm
Product diameter
115mm
Product depth
1.5in
Product diameter
4.53in
Conformance
Standards
EN 54-3
Approvals
  • FG
  • CPR
Electrical
Polarity
L1 & L2 are polarity sensitive
Battery powered
No
Quiescent current
100μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Loop powered
Yes
External power supply required
No
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
IP rating Value
IP23D
Operating temperature (min)
-4°F
Operating temperature (max)
140°F
Operating temperature
-4 to 140°F
