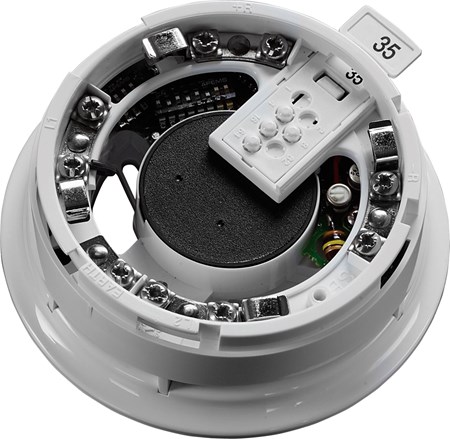

XP95 Sounder Base

45681-278APO

The sounder base comprises of a base sounder with integral mounting base and is for use with Discovery or XP95 ranges. It is designed for indoor use.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Conformance
Approvals
  • SBSC
  • CPR
Electrical
Polarity
L1 & L2 are polarity sensitive
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Protocol voltage
5 to 9V peak to peak
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
200μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Mechanical
Materials housing
Polycarbonate
Product length
38mm
Product diameter
115mm
Weight
140g
Product length
1.5in
Product diameter
4.53in
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
IP rating Value
IP21D
Operating temperature (min)
-4°F
Operating temperature (max)
140°F
Operating temperature
-4 to 140°F
