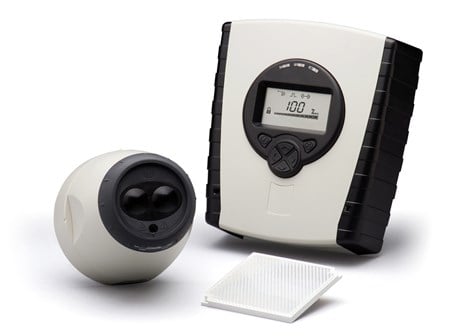

Intelligent Reflective Beam Detector - Auto-Aligning

SA7100-100APO

The Intelligent Auto-Aligning Beam Detectors use the light obscuration principle and sees light produced by the transmitter. Beam detectors are ideal to monitor large open areas and buildings with high ceilings.

Technical specification
General
Warranty
10 year
Applications
  • Churches
  • Warehouses
Default Variant
Yes
Website Categories
  • Specialist Detectors
  • Analogue Addressable
Performance
Operating distance (max)
100m
Operating distance (min)
8m
Operating distance
8 to 100m
Optical wave length
850nm
Mechanical
Colour
Grey
Materials housing
Polycarbonate
Controller with base - height
230mm
Controller with base - weight
1000g
Controller with base - width
202mm
Detector with base - height
131mm
Detector with base - weight
537g
Detector with base - width
134mm
Universal bracket - width
202mm
Universal bracket - height
230mm
Reflector - height
100mm
Reflector - width
100mm
Reflector - weight
100g
Conformance
Standards
  • EN 54-12
  • EN 54-17
Approvals
  • CPR
  • VdS
Electrical
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Environmental
Humidity (max)
93% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 93% (no condensation or icing)
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
IP rating
Designed to
IP rating Value
IP54
Storage temperature (max)
85°C
Storage temperature (min)
-40°C
Storage temperature
-40 to 85°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
