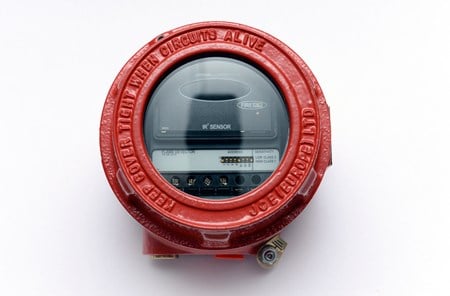

Conventional Exd Flame Detector (IR2) - Flameproof [SIL2]

55000-061APO

The Conventional Exd Flame Detector (IR2) is designed for use in hazardous environments in indoor applications. The combination of filters and signal processing allows the sensor to be used with a very low risk of false alarms in difficult situations characterised by factors such as flickering lights. BASEEFA has certified the detector for compliance to standards EN 60079-0, EN 60079-1 and EN 61241-1.

• ATEX & IECEx certified: II2GD Ex d IIC T4 Gb EE tb IIICT135 °C Db IP66 A21 (Zones 1, 21, 2 and 22)
• Selectable output options: Conventional two-wire, 4-20mA, Latching or Non-latching, Relay Contacts - Fire/Fault, Pre alarm
• Class 1 sensitivity to EN 54-10 detects 0.1m2 fire at 25m
• High optical interference immunity
• Selectable response speed
• Optical self test
• Low power consumption
