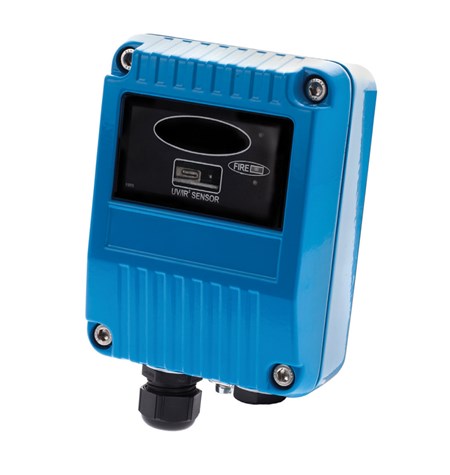

Conventional Flame Detector (UV/IR2) [SIL2]

55000-064APO

The combination of UV and IR2 detection, plus signal processing allows the sensor to be used without risk of false alarms in difficult situations chracterised by factors such as flickering blackbody by radiation or arc welding.

Technical specification
General
Warranty
3 year
Default Variant
Yes
Website Categories
  • Specialist Detectors
  • Conventional
Mechanical
Colour
Blue
Weight
1000g
Materials housing
Die-cast zinc alloy
Product length
142mm
Product width
108mm
Product depth
82mm
Number of cable gland entries
2
Cable gland entries size
20mm
Product length
5.59in
Product width
4.25in
Product depth
3.23in
Conformance
Approvals
  • CPR
  • LPCB
Performance
Range of view (at 25m)
0.1m² n-heptane
Range of view (at 35m)
0.2m² n-heptane
Range of view (at 45m)
0.4m² n-heptane
Field of view
90°
Spectral response (min) - UV
185μm
Spectral response (max) - UV
260μm
Spectral response - UV
185 to 260μm
Spectral response - IR
0.9 to 1.7μm
Spectral response (max) - IR
1.7μm
Spectral response (min) - IR
0.9μm
Electrical
Maximum power-up time
2 seconds
Supply voltage (max)
28V dc
Supply voltage (min)
14V dc
Supply voltage (Vmin-Vmax)
14 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-10 to 85°C
Operating temperature (max)
85°C
Operating temperature (min)
-10°C
Storage temperature (max)
65°C
Storage temperature (min)
-20°C
Storage temperature
-20 to 65°C
Operating temperature
14 to 185°F
Operating temperature (max)
185°F
Operating temperature (min)
14°F
