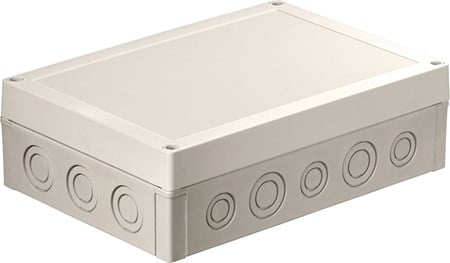

XP95 Input/Output Module - Three Channel - Isolating

55000-588APO

The XP95 Input/Output Module - Three Channel - Isolating is used to control and monitor the operation of a circuit of conventional sounders or bells.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Relay output contact rating
1A
Relay output rating tested at
30V ac
Conformance
Approvals
  • CPR
  • VdS
  • LPCB
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Power-up surge current
6.5mA
Maximum power-up time
150ms
On resistance
0.2Ω
Quiescent current, 20kΩ EOL fitted
3mA
Maximum continuous current
1A
Maximum switching current
3A
Switch input monitoring voltage
9 to 11V dc
Switch input monitoring voltage (max)
11V dc
Switch input monitoring voltage (min)
9V dc
Maximum cable resistance
50Ω
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP54
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
