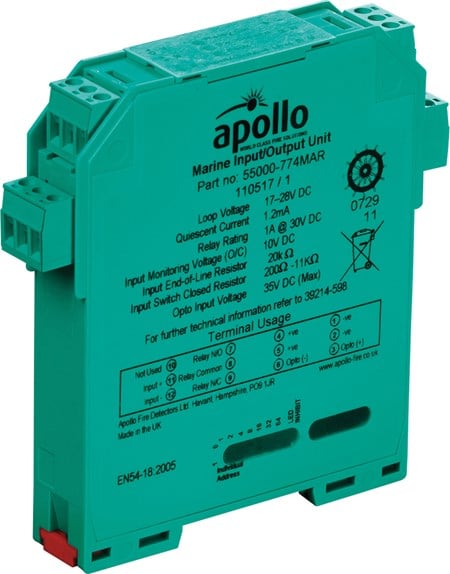

XP95 Marine DIN-Rail Input/Output Module [SIL2]

55000-774MAR

The XP95 Marine DIN-Rail Input/Output Module provides a voltage-free, single pole, changeover relay output, a single, monitored switch input and an unmonitored, non-polarised opto-coupled input.

Technical specification
General
Warranty
10 year
Default Variant
No
Website Categories
  • Interfaces
  • Analogue Addressable
Website Specialist Applications
  • Marine
  • Offshore
Conformance
Approvals
  • ABS
  • ESC
  • MED
Electrical
Quiescent current
31200μA
Quiescent current tested at
28V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Power-up surge current
3.5mA
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature (max)
70°C
IP rating Value
IP20
Operating temperature (max)
158°F
