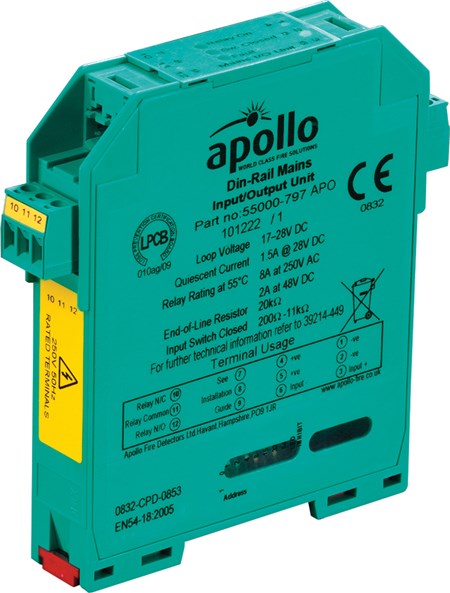

XP95 DIN-Rail Input/Output Module (250V AC)

55000-797APO

The XP95 DIN-Rail Input/Output Module is used to monitor single pole, volt free contact inputs and control mains switching relay output contacts.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Conformance
Approvals
  • LPCB
  • CPR
Mechanical
Weight
95g
Product length
107mm
Product width
110mm
Product depth
20mm
Product length
4.21in
Product width
4.33in
Product depth
0.79in
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
20 to 65°C
Operating temperature (max)
65°C
Operating temperature (min)
20°C
IP rating Value
IP20
Operating temperature
68 to 149°F
Operating temperature (max)
149°F
Operating temperature (min)
68°F
