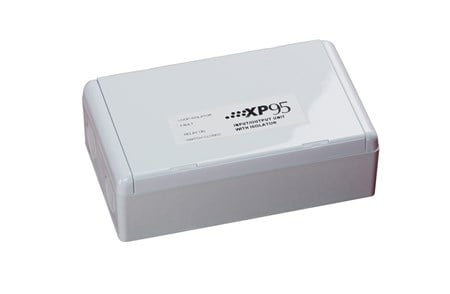

XP95 Input/Output Module - Isolating [SIL2]

55000-847SIL

The XP95 Input/Output Module provides a voltage-free, double pole changeover (DPCO) relay output, a single monitored switch input and an unmonitored, non-polarised opto-coupled input.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • SIL Approved Devices
  • Analogue Addressable
Website Specialist Applications
SIL Approved
Associated Ranges
Apollo
Conformance
Approvals
ESC
Electrical
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Quiescent current, 20kΩ EOL fitted
1.2mA
Opto voltage (max)
11V dc
Opto voltage (min)
9V dc
Opto voltage range
9 to 11V dc
Mechanical
Weight
240g
Product length
90mm
Product width
150mm
Product depth
48mm
Product length
3.54in
Product width
5.91in
Product depth
1.89in
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP54
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
