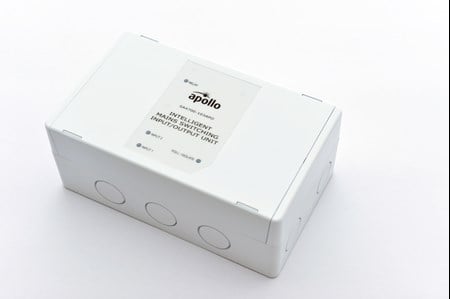

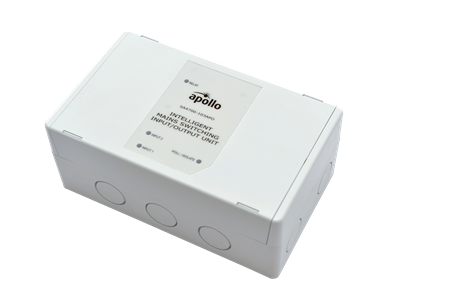

Intelligent Input/Output Module (250V AC)

SA4700-103APO

The Intelligent Input/Output Module is used to monitor two single pole, volt free contact inputs and control mains switching relay output contacts.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Weight
301g
Product length
60mm
Product width
150mm
Product depth
90mm
Product length
2.36in
Product width
5.91in
Product depth
3.54in
Conformance
Approvals
  • FG
  • LPCB
  • SBSC
  • BOSEC
  • VdS
  • CPR
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP54
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
