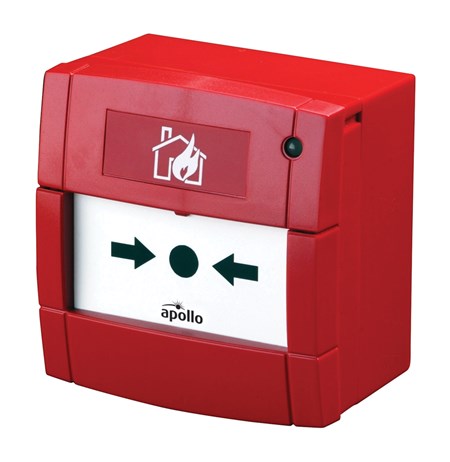

Conventional Marine Manual Call Point

55100-021MAR

The Conventional Marine Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

Technical specification
General
Warranty
10 year
Website Specialist Applications
  • Marine
  • Offshore
Mechanical
Colour
Red
Weight
180g
Product length
98mm
Product width
93mm
Product depth
59.5mm
Detection principle
Operation of a switch.
Key type
KAC Manal Call Point test & reset key
Product length
3.86in
Product width
3.66in
Product depth
2.34in
Conformance
Standards
EN 54-11
Approvals
CCS
Environmental
Humidity (max)
93% RH
Humidity (min)
0% RH
Humidity
0% to 93% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
10°C
Operating temperature (max)
55°C
Operating temperature
10 to 55°C
IP rating Value
IP24D
Operating temperature
50 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
50°F
