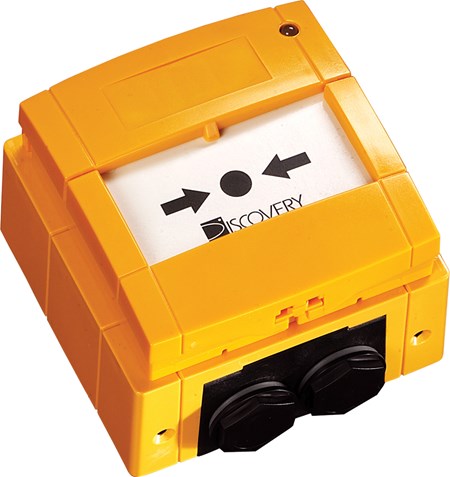

Discovery Manual Call Point - Outdoor - Yellow - Isolating

58100-953APO

The Manual Call Point is used to control extinguishant release rather than to initiate an alarm signal on the fire detection system.

Technical specification
General
Warranty
5 year
Default Variant
Yes
Website Categories
  • Manual Call Points
  • Analogue Addressable
Mechanical
Colour
Yellow
Weight
240g
Materials housing
Polycarbonate
Product length
98mm
Product width
96mm
Product depth
71mm
Product length
3.86in
Product width
3.78in
Product depth
2.8in
Electrical
Power-up surge current
1mA
Maximum power-up time
Commercial
Quiescent current
100μA
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-30°C
Operating temperature (max)
70°C
Operating temperature
-30 to 70°C
Operating temperature
-22 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-22°F
