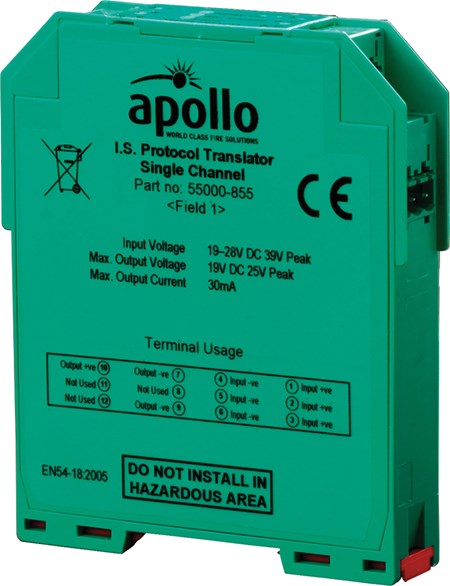

XP95 Protocol Translator [SIL2]

55000-855APO

The XP95 Protocol Translator is installed in the safe area ensuring integrity of communication between control equipment and field devices and safety within the limits of BASEEFA approvals.

Technical specification
General
Warranty
10 year
Mechanical
Colour
Green
Weight
100g
Materials housing
Polycarbonate
Product length
110mm
Product width
92.5mm
Product depth
20mm
Product length
4.33in
Product width
3.64in
Product depth
0.79in
Conformance
Approvals
  • ABS
  • ESC
  • KRS
  • LPCB
  • LR
  • DNV.GL
  • CPR
  • MED
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Supply voltage (max)
28V dc
Supply voltage (min)
19V dc
Supply voltage (Vmin-Vmax)
19 to 28V dc
Environmental
Humidity
10% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
10% RH
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
