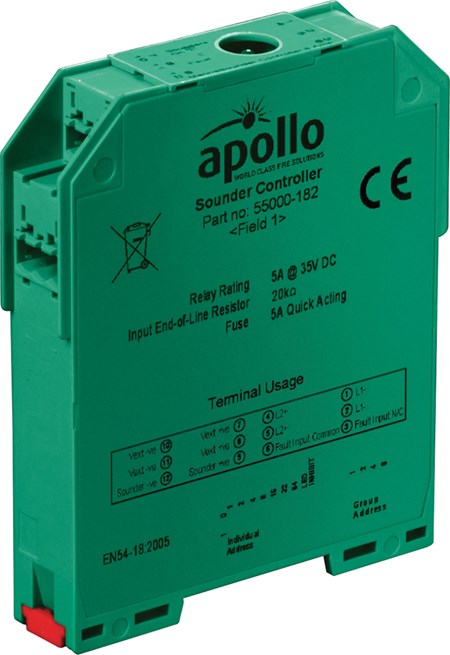

XP95 DIN-Rail AV Control Module (5 Amperes)

55000-182APO

The XP95 DIN-Rail AV Control Module is used to control and monitor the operation of a circuit of conventional sounders or bells.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Conformance
Standards
EN 54-18
Approvals
  • FG
  • LPCB
  • CPR
Electrical
Quiescent current
1900μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Mechanical
Weight
95g
Product length
107mm
Product width
110mm
Product depth
20mm
Product length
4.21in
Product width
4.33in
Product depth
0.79in
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP20
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
