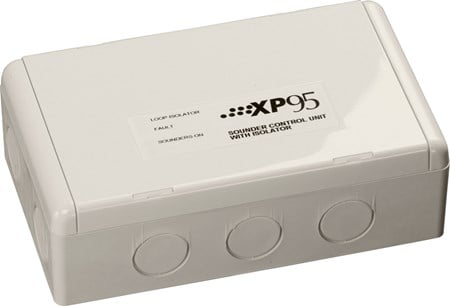

XP95 AV Control Module - Isolating

55000-852APO

The XP95 AV Control Module is used to control and monitor the operation of a circuit of conventional sounders or bells.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Weight
240g
Product length
48mm
Product width
150mm
Product depth
90mm
Product length
1.89in
Product width
5.91in
Product depth
3.54in
Conformance
Standards
  • EN 54-17
  • EN 54-18
Approvals
  • FG
  • LPCB
  • VdS
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Power-up surge current
2.6mA
Maximum power-up time
<1 second
On resistance
0.2Ω
Sounder circuit voltage (max)
32V dc
Sounder circuit currents
30V dc
Sounder circuit currents tested at
1A
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating
Designed to
IP rating Value
IP54
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
