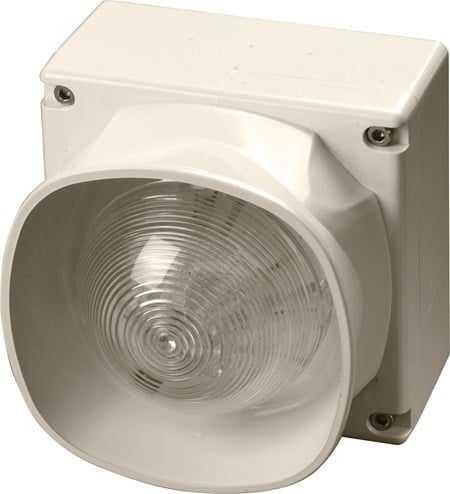

XP95 Open-Area Multi-Tone Sounder VID - Outdoor - White Body (Red Flash) - Isolating

55000-299APO

The XP95 Open-Area Multi-Tone Sounder VID is designed for use in outdoor open-areas. The product is loop-powered and does not require an external power supply. It is capable of 100dB(A) is achieved at a current consumption of 5mA in the case of the sounder and 9mA for the sounder Visual Indicator. Many control panels will be able to drive up to 20 sounders per loop on average and can be synchronised by sending address ‘0’ in exactly the same way as the XP95 Sounder Control Unit.

Technical specification
General
Warranty
10 year
Performance
Selectable volume(s)
  • 92dB (A)
  • 100dB (A)
Mechanical
Colour
White
Product length
110mm
Product width
110mm
Product depth
113mm
Weight
294g
Product length
4.33in
Product width
4.33in
Product depth
4.45in
Conformance
Approvals
CPR
Electrical
Polarity
L1 & L2 are polarity sensitive
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
330μA
Supply voltage (max)
28V dc
Supply voltage (min)
18V dc
Supply voltage (Vmin-Vmax)
18 to 28V dc
Environmental
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP66
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
