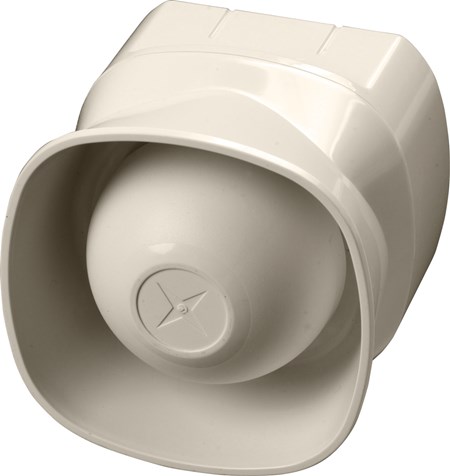

XP95 Open-Area Multi-Tone Sounder - White Body

55000-279APO

The XP95 Open-Area Multi-Tone Sounder is designed for use in open areas and can be connected to any Discovery or XP95 system

Technical specification
General
Warranty
10 year
Performance
Maximum sound output tone
100dB (A)
Selectable volume(s)
  • 92dB (A)
  • 100dB (A)
Mechanical
Colour
White
Product length
105mm
Product width
105mm
Product depth
90mm
Weight
290g
Product length
4.13in
Product width
4.13in
Product depth
3.54in
Conformance
Approvals
CPR
Electrical
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
330μA
Quiescent current tested at
24V dc
Supply voltage (min)
18V dc
Supply voltage (max)
28V dc
Supply voltage (Vmin-Vmax)
18 to 28V dc
Environmental
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
-10 to 55°C
IP rating Value
IP21C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
