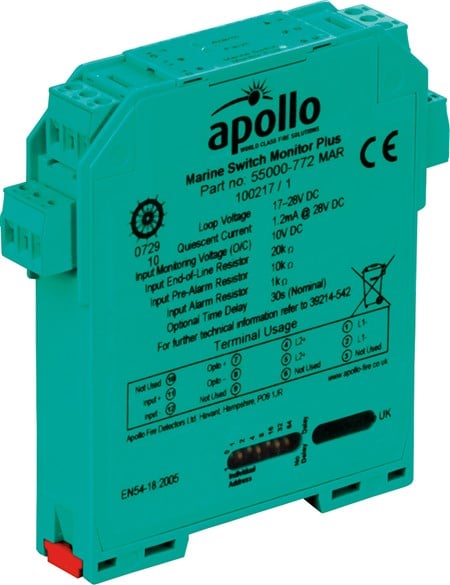

XP95 Marine DIN-Rail Switch Monitor Plus Module

55000-772MAR

The Marine DIN-Rail Switch Monitor Plus is designed to monitor the state of one or more single pole, volt free contacts connected on a single pair of cables and to report the status to Apollo compatible analogue control equipment.

Technical specification
General
Warranty
10 year
Website Specialist Applications
  • Marine
  • Offshore
Conformance
Approvals
  • ABS
  • MED
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Power-up surge current
2.5mA
Maximum power-up time
65ms
Quiescent current, 20kΩ EOL fitted
0.73mA
Mechanical
Weight
95g
Product length
110mm
Product width
107mm
Product depth
20mm
Product length
4.33in
Product width
4.21in
Product depth
0.79in
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP20
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
