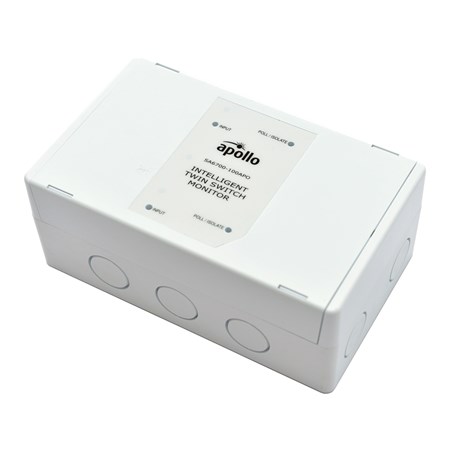

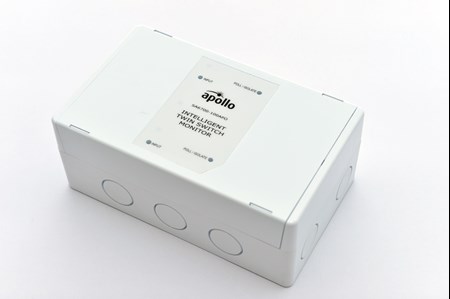

Intelligent Switch Monitor Module (Twin)

SA6700-100APO

The Intelligent Twin Switch Monitor Module provides the function of two Switch Monitor Modules to monitor one or more single pole, volt free contacts connected on a single pair of cables and report status to fire control panel.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Weight
273g
Product length
60mm
Product width
150mm
Product depth
90mm
Product length
2.36in
Product width
5.91in
Product depth
3.54in
Conformance
Standards
  • EN 54-17
  • EN 54-18
Approvals
  • FG
  • LPCB
  • SBSC
  • BOSEC
  • VdS
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
13V
Protocol voltage
5 to 13V peak to peak
Quiescent current
500μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Power-up surge current
0.9mA
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP52
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
