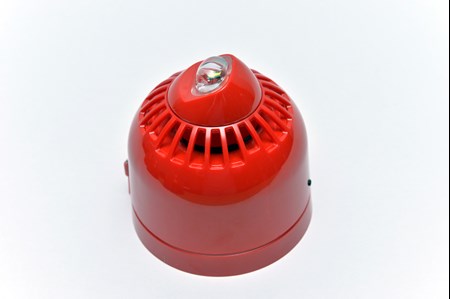

Conventional Open-Area VAD Cat. W - Red Body (White Flash) (W-3.1-11.3)

29600-800

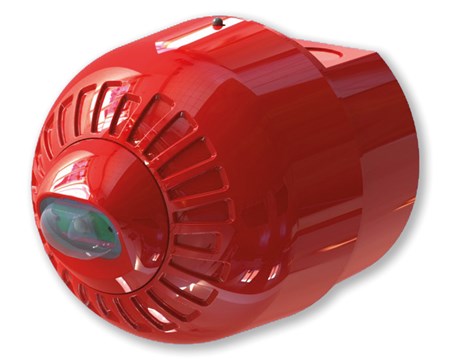

Sonos Pulse conventional wall mounted Visual Alarm Devices are available with a white and red flash colour. The white flash variant has an EN 54-23 approved coverage pattern of W-3.1-11.3, whereas the red flash variant has a coverage pattern of W-2.4-7.5.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Visual Alarm Devices
  • Conventional
  • Audio Visual Signalling
Performance
Maximum sound output tone
97dB (A)
Mechanical
Colour
Red
Weight
240g
Materials housing
Polycarbonate
Product depth
117mm
Product diameter
97.5mm
Number of cable gland entries
2
Cable gland entries size
20mm
Fixing centres
4.5mm
Product depth
4.61in
Product diameter
3.84in
Conformance
Standards
EN 54-23
Electrical
Supply voltage (max)
60V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 60V dc
Environmental
Operating temperature
-25 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-25°C
IP rating Value
IP65
Operating temperature
-13 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-13°F
