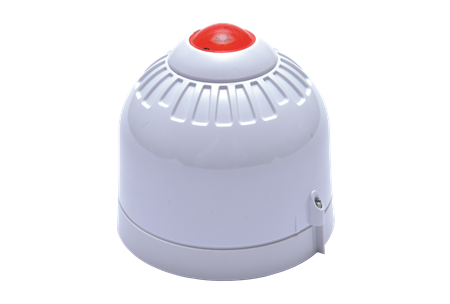

Conventional Open-Area VAD Cat. C - White Body (Red Flash) (C-3-8.9)

29600-803

Sonos Pulse conventional ceiling mounted Visual Alarm Devices are available with a white and red flash colour. The white flash variant has an EN 54-23 approved coverage pattern of C-3-15, whereas the red flash variant has a coverage pattern of C-3-8.9.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Visual Alarm Devices
  • Audio Visual Signalling
  • Conventional
Mechanical
Colour
White
Weight
240g
Materials housing
Polycarbonate
Product depth
66mm
Product diameter
100mm
Product depth
2.6in
Product diameter
3.94in
Conformance
Standards
EN 54-23
Electrical
Supply voltage (max)
60V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 60V dc
Environmental
Operating temperature
-25 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-25°C
IP rating Value
IP21
Operating temperature
-13 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-13°F
