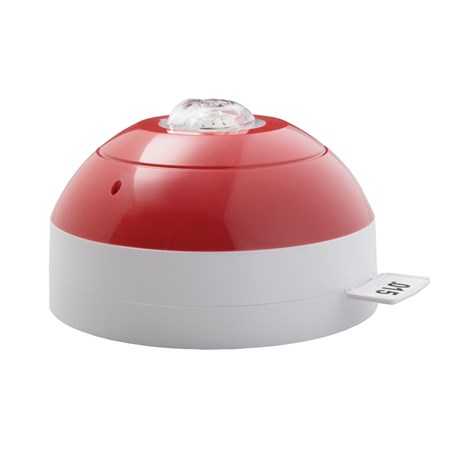

XP95 Open-Area VAD Cat. W - Red Body (White Flash) (W-2.4-6)

55000-741APO

The XP95 Open-Area VAD Cat. W has been developed as a primary or supplementary alarm device for use in situations where there is a risk that sounders will not be heard. This occurs, for example, where there is a high background noise e.g. in a workshop or a machine room. It might also be required where deaf or hearing impaired persons may be present.

Technical specification
General
Warranty
10 year
Performance
Flash rate
0.5Hz
Mechanical
Colour
Red
Weight
105g
Materials housing
Polycarbonate
Product length
48mm
Product diameter
100mm
Product length
1.89in
Product diameter
3.94in
Conformance
Standards
EN 54-23
Approvals
  • FG
  • CPR
  • LPCB
  • VdS
Electrical
Quiescent current
280μA
Environmental
Humidity (min)
0% RH
Humidity (max)
95% RH
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
