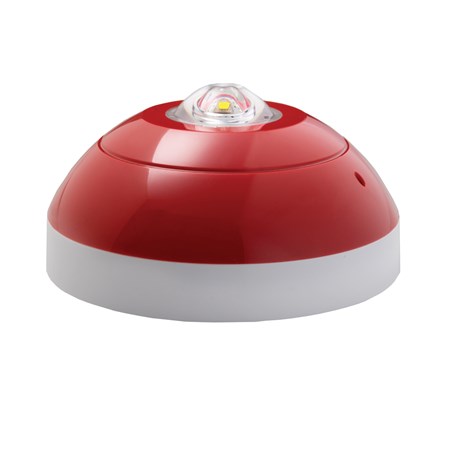

XP95 Open-Area VAD Cat. C - Red Body (White Flash) (C-3-8)

55000-742APO

The XP95 Open-Area VAD Cat. C is designed for indoor use. The Category C VAD is specifically designed for use on a ceiling and comes in two different coverage classes. These devices are used to supplement sounders in areas which carry the risk that sounders will not be heard.

Technical specification
General
Warranty
10 year
Performance
Flash rate
0.5Hz
Coverage class
c-3-8
Mechanical
Colour
Red
Weight
105g
Materials housing
Polycarbonate
Conformance
Standards
EN 54-23
Approvals
  • CPR
  • FG
  • LPCB
  • VdS
Electrical
Quiescent current
280μA
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity (min)
0% RH
Humidity (max)
95% RH
Humidity Note
no condensation or icing
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
