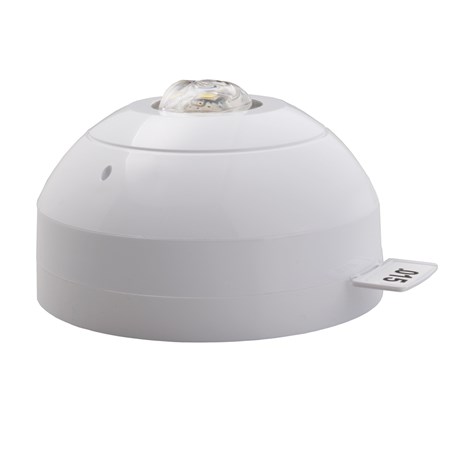

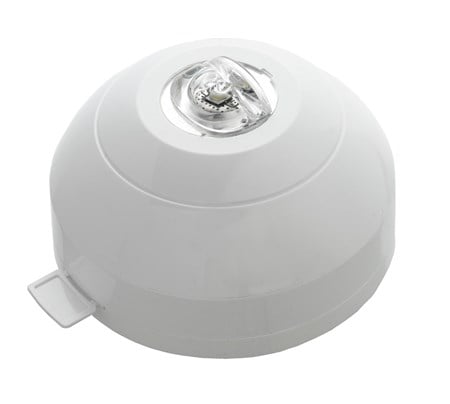

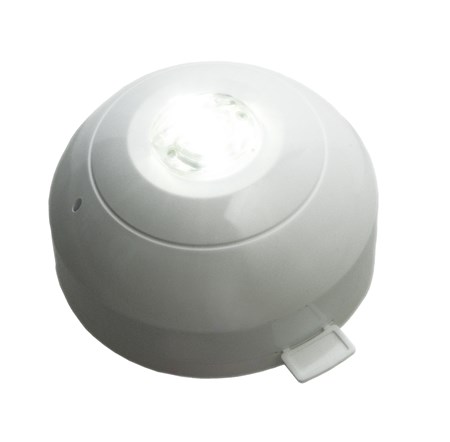

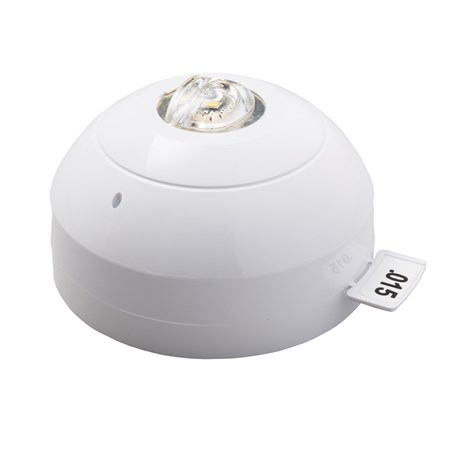

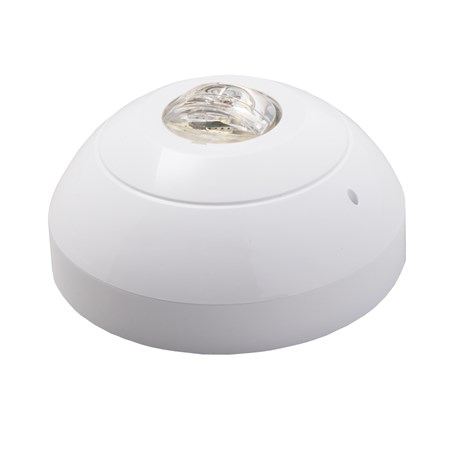

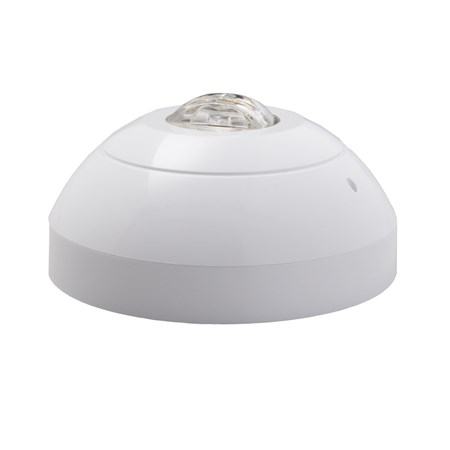

XP95 Open-Area VAD Cat. W - White Body (White Flash) (W-2.4-6)

Name: XP95 Open-Area VAD Cat. W - White Body (White Flash) (W-2.4-6)
Brand: Discovery
SKU: 55000-744APO

55000-744APO

The XP95 Open-Area VAD Cat. W has been developed as a primary or supplementary alarm device for use in situations where there is a risk that sounders will not be heard. This occurs, for example, where there is a high background noise e.g. in a workshop or a machine room. It might also be required where deaf or hearing impaired persons may be present.

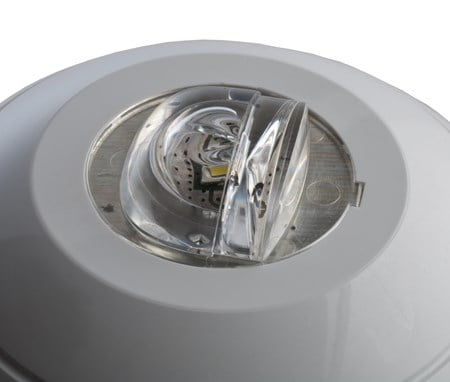

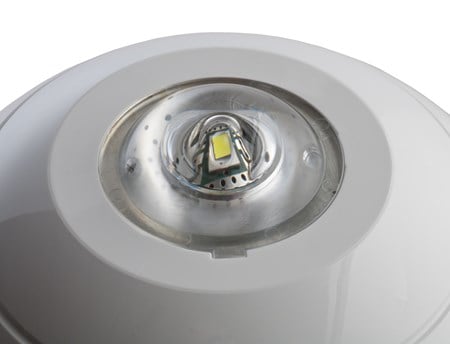

Uses high intensity LED (white flash only)
EN 54-23 Compliant Category W. VAD
Coverage W-2.4-6
Automatic LED check when VAD activated
Flash rate 0.5Hz
Fault signal if LED check failed
Locking mechanism (grub screw)
Wide angle of visibility
Synchronised with the Apollo Protocol

Technical specification

General	Warranty 10 year
Performance	Flash rate 0.5Hz
Mechanical	Colour White Weight 105g Materials housing Polycarbonate Product length 48mm Product diameter 100mm Product length 1.89in Product diameter 3.94in
Conformance	Standards EN 54-23 Approvals CPR FG LPCB VdS
Electrical	Quiescent current 280μA
Environmental	Humidity (min) 0% RH Humidity (max) 95% RH Operating temperature -10 to 55°C Operating temperature (max) 55°C Operating temperature (min) -10°C Operating temperature 14 to 131°F Operating temperature (max) 131°F Operating temperature (min) 14°F
