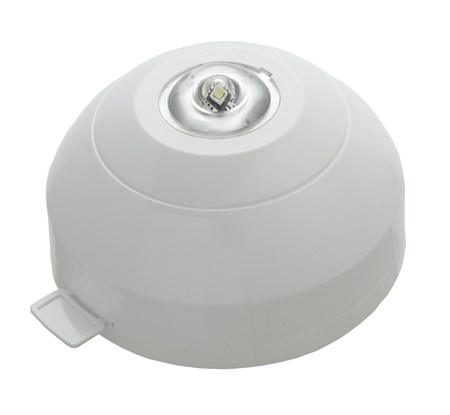

XP95 Open-Area VAD Cat. C - White Body (White Flash) (C-3-8)

55000-745APO

The XP95 Open-Area VAD Cat. C is specifically designed for use on a ceiling. These devices are used to supplement sounders in areas which carry the risk that sounders will not be heard.

Technical specification
General
Warranty
10 year
Performance
Flash rate
0.5Hz
Coverage class
c-3-8
Mechanical
Colour
White
Weight
105g
Materials housing
Polycarbonate
Conformance
Standards
EN 54-23
Approvals
  • CPR
  • FG
  • VdS
  • LPCB
Electrical
Quiescent current
280μA
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity (min)
0% RH
Humidity (max)
95% RH
Humidity Note
no condensation or icing
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
